Compact photometer PF‑12Plus - Image 1
Reference: 919250

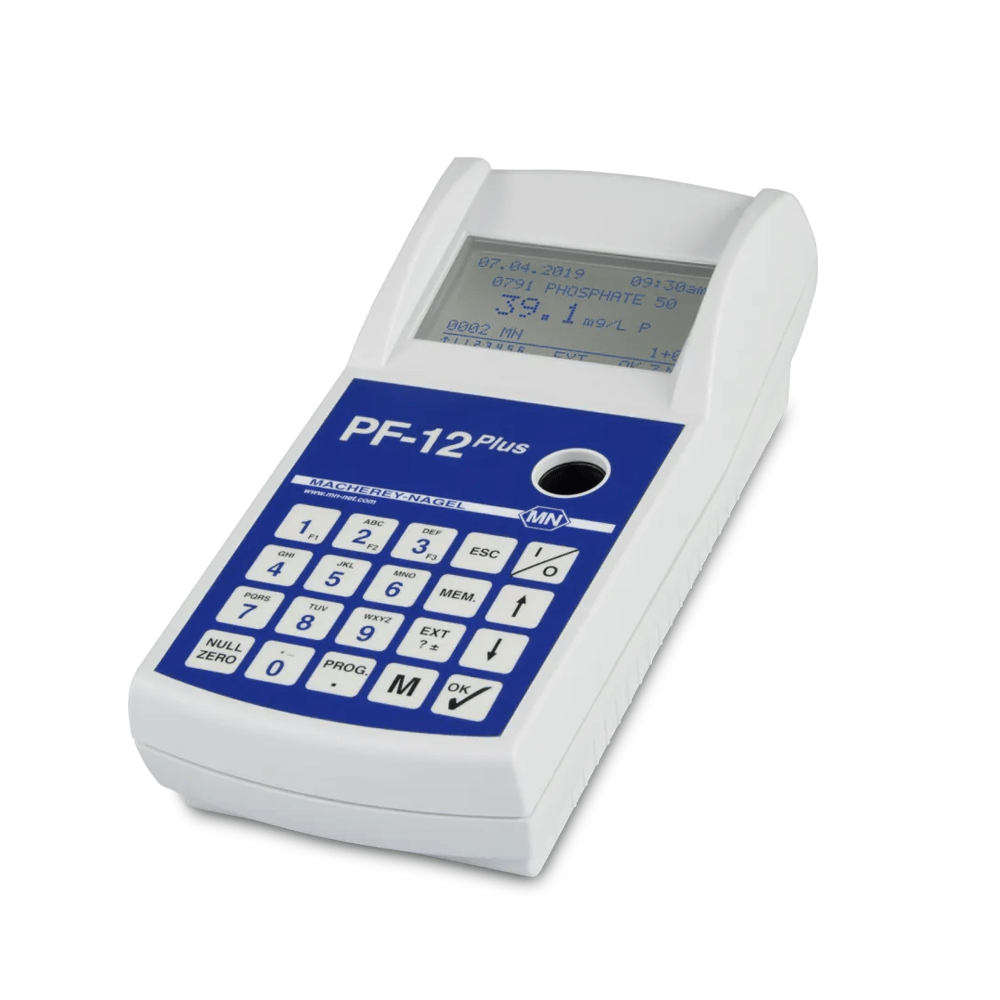

Compact photometer PF‑12Plus

MACHEREY-NAGEL

The photometer PF‑12Plus is a device tailored for mobile water analysis. Equipped with more than 100 pre-programmed methods, it is the ideal companion for all fields of water and wastewater analysis.

Available on backorder

⇆Compare
Order via WhatsApp

Product Details

  • Type: Portable filter photometer with microprocessor control, self-test, and auto-calibration
  • Optical System: Automatic filter wheel with 7 interference filters
  • Light Source: Xenon lamp
  • Wavelengths: 345, 436, 470, 540, 585, 620, 690 nm + 860 nm for turbidity (NTU); expandable with one additional filter
  • Photometric Range: ±3 Abs
  • Photometric Accuracy: ±1%
  • Wavelength Accuracy: ±2 nm
  • Measuring Modes:
    • 100+ preprogrammed test methods
    • Absorbance & Transmission
    • Factor & Standard measurements
    • Nephelometric Turbidity (1–1000 NTU)
    • 50 user-programmable methods
  • Sample Holder: 16 mm round tube cuvette slot
  • Display: Backlit graphic LCD (128 × 64 pixels)
  • Memory: Stores up to 1,000 results with GLP compliance
  • Connectivity: USB 2.0
  • Protection: Waterproof and dustproof (IP68), shock-resistant housing
  • Power Supply: USB adapter, AA batteries, rechargeable batteries, or accu-pack
  • Operating Temperature: 10–40°C
  • Quality Control: Integrated NANOCONTROL NANOCHECK 2.0
  • Certifications: CE Certified
  • Dimensions: 215 × 100 × 65 mm
  • Weight: 0.7 kg
  • Warranty: 2 years
