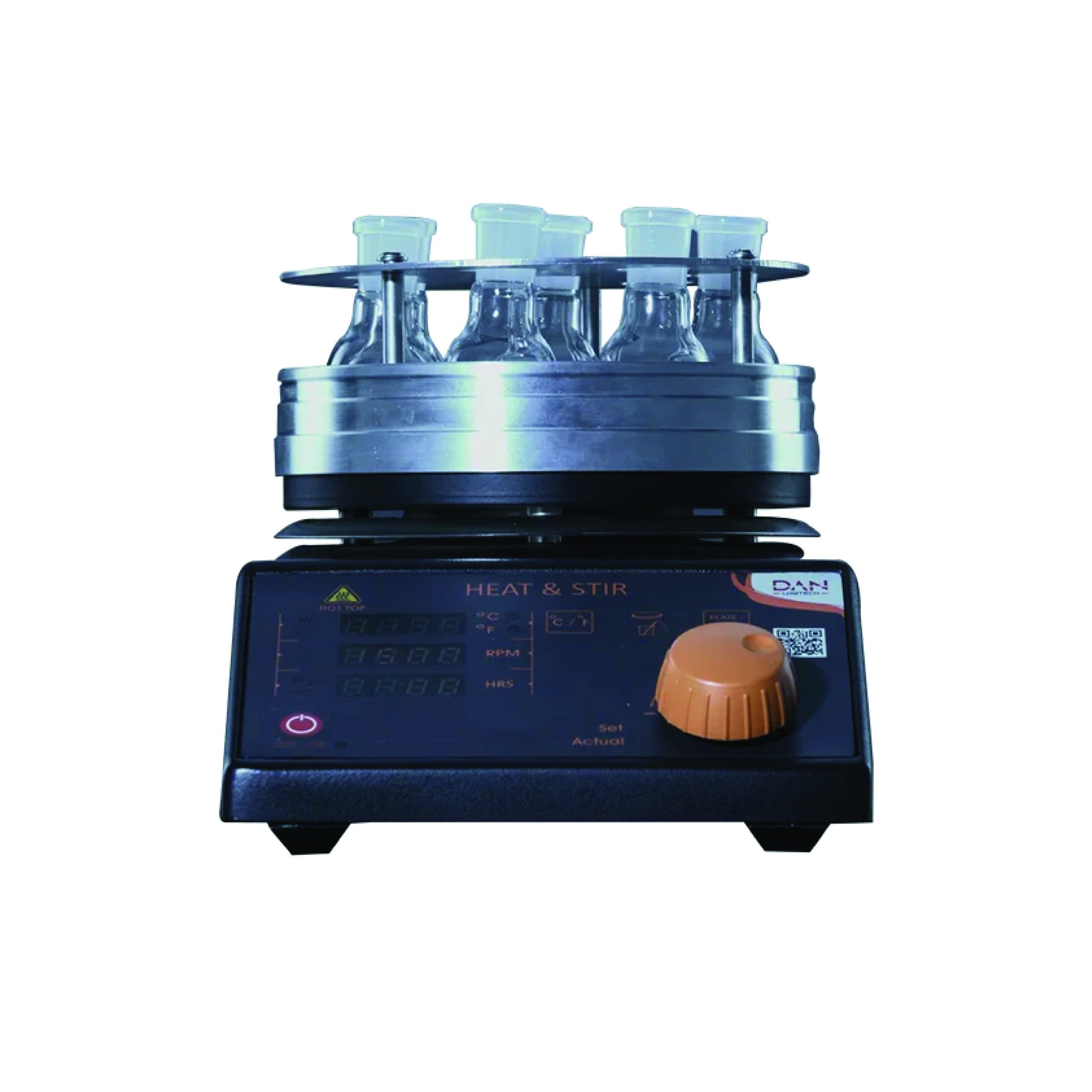

Digital Hotplate with Magnetic Stirrer - Image 1
Reference: 610.DNDG.01

Digital Hotplate with Magnetic Stirrer

GLASSCO

Aluminium Alloy Ceramic-Coated Top

Order via WhatsApp

View Product Specifications

  • Heating Plate Material: Ceramic coated stainless steel
  • Heating Plate Dimension: Ø 150 mm
  • Displays: Three display windows (Temperature, RPM, Time)
  • Stirring Speed Range: 50 – 1500 RPM
  • Heat Output: 650 W
  • Heating Capacity: 2 L
  • Stirring Capacity: 20 L
  • Maximum Stirring Bar Length: Up to 80 mm (at low speed)
  • Temperature Range: Ambient to 350°C (approx.)
  • Adjustable Safety Cut-off: 50 – 400°C
  • Control Accuracy (PT 100): ±1 K
  • Weight: 3.2 kg
  • Dimensions: 273 × 160 × 102 mm
  • Permissible Ambient Temperature: 5 – 40°C
  • Permissible Relative Humidity: ≤ 80%
  • RS 232 Interface: Yes (for programming)
  • Frequency: 50/60 Hz
  • Voltage: 230 / 115 V
  • Protection Standard: IP32 (DIN EN 60529)
