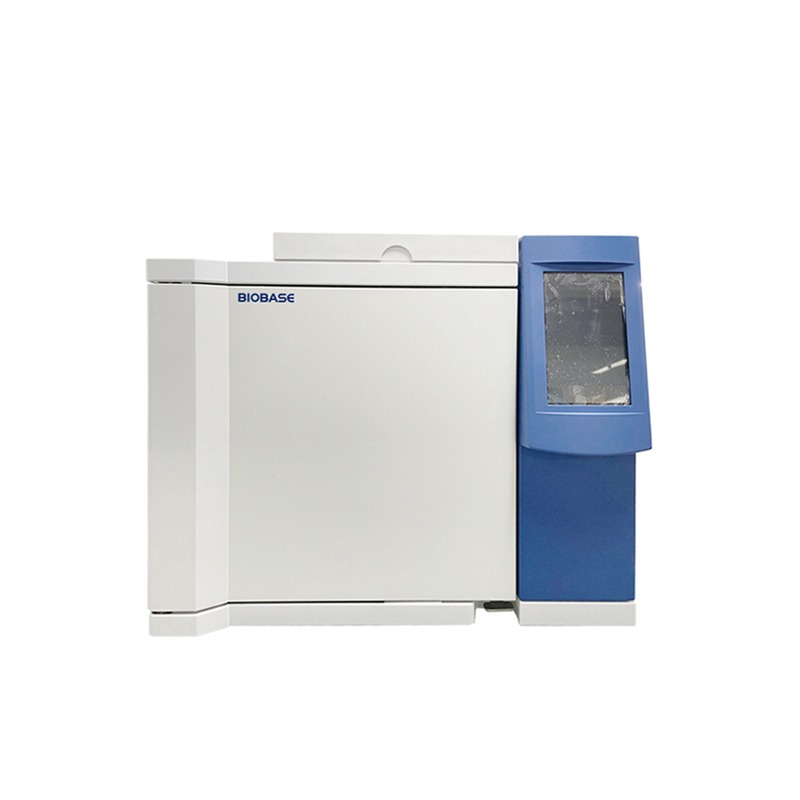

Model: BK-GC112A

Oven

• Capacity: 22L
• Temp. Range: RT+5°C–400°C
• Temp. Accuracy: ±0.1°C
• Temp. Program: 9 step
• Program Total Time: 9999.9 min
• Max Temp. Heating Rate: 60°C/min

Sample Injector

• Temp. Range: RT+7°C–420°C
• Column or split injector can be installed
• Carrier gas flow control type: Constant pressure mode
• Max. Quantity: 3pcs
• Pre Column Pressure Range: 0–400kPa
• Pre Column Pressure Accuracy: 0.1kPa
• Flow Setting Range: H2: 0–200ml/min; N2: 0–150ml/min

Detector

• Temp. Range: RT+7°C–420°C

Hydrogen Flame Ionization Detector (FID)

• Logarithmic amplifier
• High voltage switch control
• Baseline signal display
• Detection limit: ≤3×10⁻¹²g/s (Sample: n-hexadecane)
• Baseline noise: ≤5×10⁻¹⁴A
• Baseline draft: ≤8×10⁻¹³A
• Dynamic range: 10⁷
• RSD: ≤3%

Thermal Conductivity Detector (TCD)(Optional)

• Sensitivity: 8000mV·ml/mg(Sample: n-hexadecane)
• Baseline noise: ≤0.05mV
• Baseline draft: ≤0.15mV/30min
• Dynamic range: 10⁵

Standard Accessory

• FID detector, Capillary injection system, Chromatography workstation software, RS232 port, LAN port

Optional Accessory

• TCD detector, Chromatographic column, Gas purifier

Package Size (W×D×H)

• 735×725×835mm

Gross Weight

• 80kg
