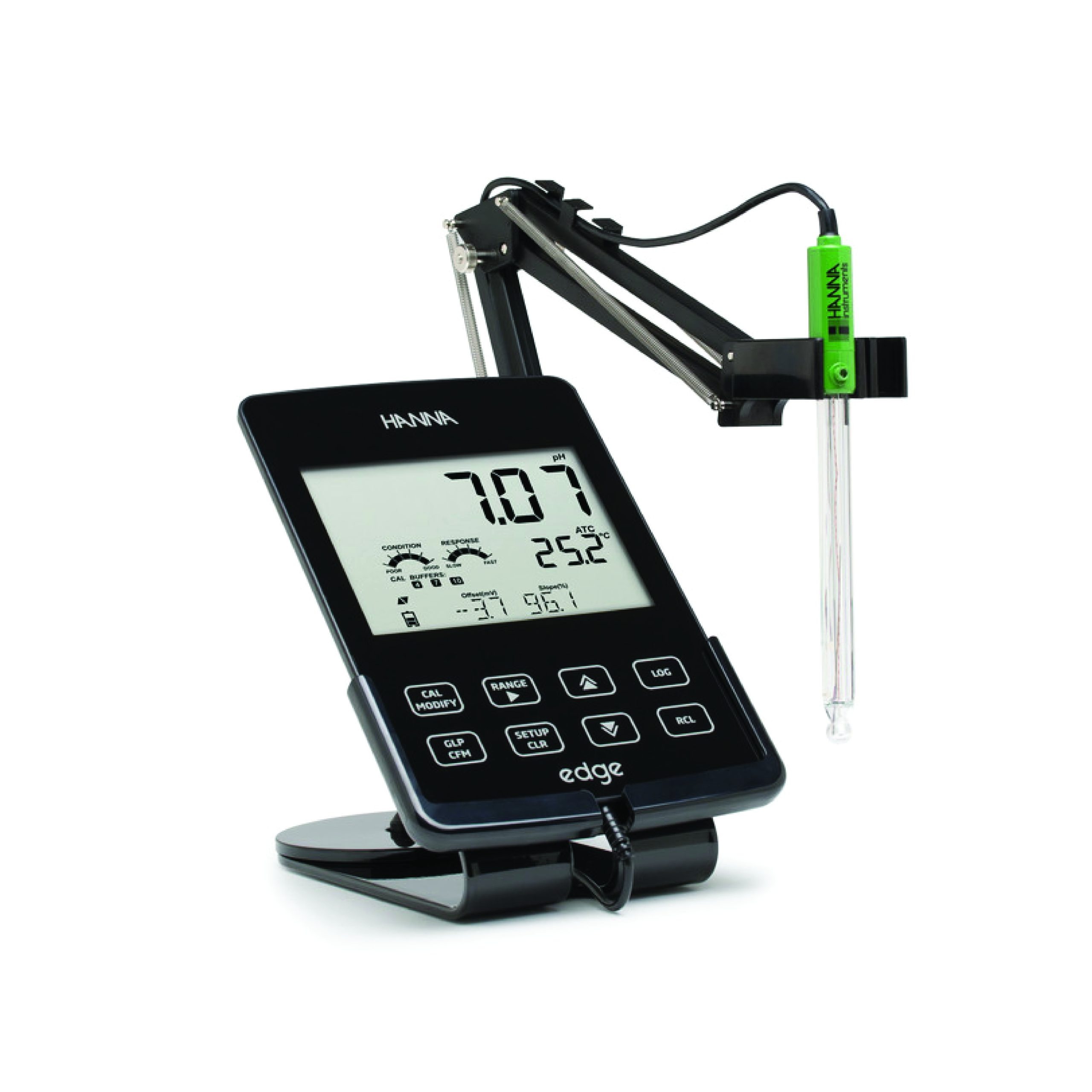

HI-2020-02 edge Hybrid Multiparameter pH/EC/DO Meter - Image 1
Reference: HI2020-02

HI-2020-02 edge Hybrid Multiparameter pH/EC/DO Meter

HANNA

edge® tablet style meter is a groundbreaking design that is the culmination of Hanna’s vision, design capabilities, integrated production and world class R&D. The edge meter is only 0.5” thick yet rich in features to accommodate the needs of a vast amount of customers.

Order via WhatsApp

View Product Specifications

  • SKU: HI2020-02
  • Product Name: edge® Multiparameter pH Meter – HI2020
  • Quote Required: Yes
  • pH Range: -2.000 to 16.000 pH; -2.00 to 16.00 pH; ±1000 mV
  • pH Resolution: 0.001 pH; 0.01 pH; 0.1 mV
  • pH Accuracy: ±0.002 pH; ±0.01 pH; ±0.2 mV
  • pH Calibration: 5-point (Standard mode) / 3-point (Basic mode) with buffers 1.68, 4.01 (3.00†), 6.86, 7.01, 9.18, 10.01, 12.45 + 2 custom buffers
  • pH Temperature Compensation: ATC
  • pH CAL Check: Probe condition, response time, glass & reference junction diagnostics (HI11311 & HI12301 only)
  • EC Range: 0.00 to 500.0 mS/cm (multiple sub-ranges, absolute EC**)
  • EC Resolution: 0.01 μS/cm to 0.1 mS/cm
  • EC Accuracy: ±1% of reading (±0.05 μS/cm or 1 digit, whichever greater)
  • EC Calibration: 1-point offset (0.00 μS/cm in air) + 1-point slope calibration using 84, 1413 μS/cm, 5.00, 12.88, 80.0, 111.8 mS/cm standards
  • TDS Range: 0.00 ppm to 400.0 g/L (absolute TDS**, 0.80 factor)
  • TDS Resolution: 0.01 ppm to 0.1 g/L
  • TDS Accuracy: ±1% of reading (±0.03 ppm or 1 digit)
  • TDS Calibration: Through EC calibration
  • EC/TDS Temperature Compensation: ATC (0.0 to 100.0°C / 32.0 to 212.0°F) or NoTC
  • Temperature Coefficient: 0.00 to 6.00%/°C (default 1.90%/°C)
  • EC to TDS Factor: 0.40 to 0.80
  • Salinity (% NaCl): 0.0 to 400.0% NaCl
  • Salinity (PSU): 2.00 to 42.00 PSU
  • Salinity (g/L): 0.0 to 80.0 g/L
  • Salinity Accuracy: ±1% of reading (@25°C)
  • Salinity Calibration: 1-point with HI7037L standard (NaCl) / via EC calibration (PSU, g/L)
  • Dissolved Oxygen (DO) Range: 0.00 to 45.00 mg/L; 0–300% saturation
  • DO Resolution: 0.01 mg/L; 0.1% saturation
  • DO Accuracy: ±1 digit; ±1.5% of reading
  • DO Calibration: 0% (HI7040 solution) and 100% (air)
  • DO Temperature Compensation: ATC
  • Salinity Compensation (DO): 0 to 40 g/L (1 g/L resolution)
  • Altitude Compensation: -500 to 4000 m (100 m resolution)
  • Temperature Range: -20.0 to 120.0°C (-4.0 to 248.0°F)
  • Temperature Resolution: 0.1°C / 0.1°F
  • Temperature Accuracy: ±0.5°C (±0.9°F)
  • pH Electrode: HI11310 pH electrode (included)
  • Logging:
    • Manual log-on-demand (max 200 logs)
    • Manual log-on-stability (max 200 logs)
    • Interval logging (max 600 samples; 100 lots)
    • Memory up to 1000 records
  • Connectivity:
    • 1 micro USB (charging + PC)
    • 1 USB port (storage)
  • Battery: Built-in rechargeable, up to 8 hours use
  • Power Supply: 230VAC to 5VDC adapter (included)
  • Operating Environment: 0 to 50°C; RH max 95% non-condensing
  • Dimensions: 202 × 140 × 12.7 mm (8” × 5.5” × 0.5”)
  • Weight: 250 g (8.82 oz)
